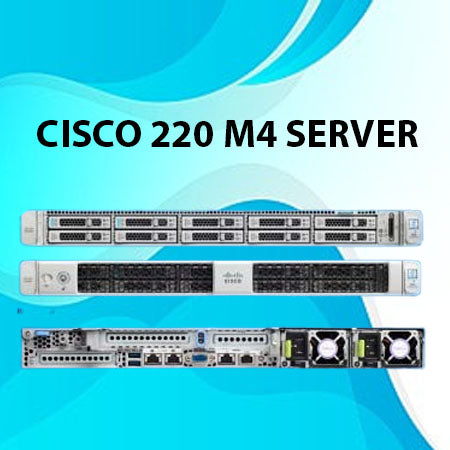

Cisco UCS C220 M4 Rack Server

Cisco UCS C220 M4 Rack Server

Rs. 23,600.00
Rs. 23,600.00
Sale Sold out
  • 1U Form Factor & 2 Socket Server
  • Intel Xeon E5-2600v3 & v4 Processors
  • RAM: 1.5GB Max Memory (24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, Speeds up to 2400MHz)
  • Storage:8×7.6 TB Max Storage Space(HDD/SSD SFF)
  • Power Supply: Redundant 770W or 1050W DC
  • Raid Controller: RAID 0, 1, 5, 6, 10, 50, 60 for up to 8 SFF/ 4 LFF Drives

Key Technical Specifications

Feature Description / Capacity
Processors (CPU) Supports up to 2 × Intel Xeon E5-2600 v3 or v4 processors (dual-socket), enabling high multi-core/multi-thread workloads.
Memory (RAM) Up to 24 DDR4 DIMMs (12 per CPU) — allowing for very large memory configurations, suitable for memory-intensive workloads.
Storage Options - “SFF” version: up to 8 × 2.5″ SAS/SATA (or SSD) drives + support for up to 2 NVMe PCIe SSDs (in specific bays).
- “LFF” version: up to 4 × 3.5″ SAS/SATA drives.
Also supports hot-swappable drives (on SFF version) for easier maintenance.
I/O & Expansion - 2 PCIe Gen 3.0 slots (horizontal risers) for additional network/storage cards or other expansions.
- Modular LAN-on-motherboard (mLOM) slot: allows installing a network interface card (e.g. a virtual interface card (VIC)) without using PCIe lane — leaving PCIe slots free.
- On-board: Two embedded 1 Gb Ethernet LAN ports + dedicated 1 Gb management port; plus other I/O (USB, VGA, serial, etc.) for management, KVM, console access.
Management / Reliability Features Comes with internal management via baseboard management controller (BMC) running the vendor’s firmware (for remote console, power management, monitoring).
Supports redundant hot-swappable power supplies (AC or DC options) and multiple hot-swappable fans for cooling — important for uptime in data-center environments.
Support for TPM (Trusted Platform Module) for enhanced security, and optional locking bezel for physical security on drives.
Use-cases / Workload Types Because of its dual CPU / high RAM / flexible storage and expansion — it’s well-suited to virtualization (VM hosts), database servers, enterprise applications, web servers, cloud infrastructure, file/ storage servers, backup servers, high-performance computing etc.
