Dell

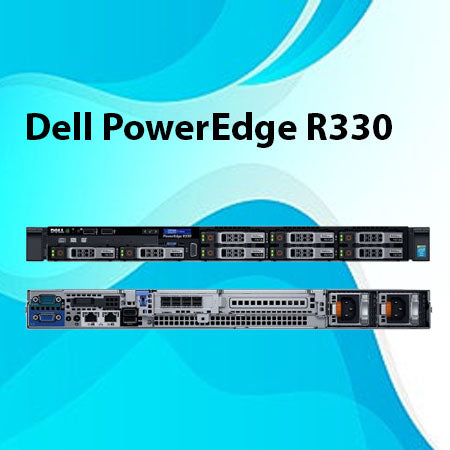

Dell PowerEdge R330 Rack Server

Dell PowerEdge R330 Rack Server

Rs. 23,600.00
Rs. 23,600.00
Sale Sold out
  • Form Factor: 1U rack server
  • Processors: Intel Xeon E3-1200 v6, Intel Pentium
  • Chipset: Intel C236
  • Maximum Memory: 64GB
  • Memory Slots: 4 UDIMMs
  • Memory Type: DDR4
  • Maximum Storage: 16TB
  • I/O Slots: 2 PCIe 3.0 slots
  • Power Supplies: 2 × 350W hot-plug redundant

Key Technical Specifications & Options

Here are the main features and configurable options for the R330 — actual specs depend on how you order/configure it.

Feature Specification / Capability
Processor (CPU) Supports 1 × CPU. Compatible CPUs: from Intel Xeon E3‑1200 v5/v6 family (common choice), or lower‑end like Intel Core i3, Pentium, Celeron depending on configuration.
Memory (RAM) 4 × DDR4 UDIMM slots. Maximum supported RAM: 64 GB (ECC UDIMM). Memory speed — up to 2400 MT/s (depending on CPU).
Storage / Drive Bays Flexible storage configurations: depending on chassis version:
• Up to 4 × 3.5″ drives (cabled or hot‑swap)
• Or up to 8 × 2.5″ drives (hot‑plug)
Supported drive types: SATA / SAS HDDs, SSDs, including various enterprise‑class and nearline drives.
RAID & Storage Controllers Supports both software and hardware RAID options: built‑in or optional controllers such as PERC S130, PERC H330, PERC H730 / H830 — giving flexibility for redundancy or performance depending on use‑case.
I/O / Expansion Expansion capability: 2 × PCIe 3.0 slots + 1 internal slot (for storage controller or additional internal module).
Networking Built-in: 2 × 1 GbE LAN (LOM) ports on standard configuration.
Power & PSU Options Power supply options include single or redundant hot‑plug PSUs — typically 350 W each (hot‑swappable).
Management & Remote Admin Integrated remote management through iDRAC8 with Lifecycle Controller; supports remote console, monitoring, firmware updates, management via tools like Dell OpenManage Essentials/Mobile/Power Center.
Form Factor & Physical Dimensions 1U rack‑mount chassis. Dimensions roughly: Height ~ 42.8 mm, Width ~ 434 mm (without rack latches), Depth ~ 677 mm (with bezel & redundant PSU). Max weight (fully configured) around ~ 13.8 kg for 4‑drive variant.
