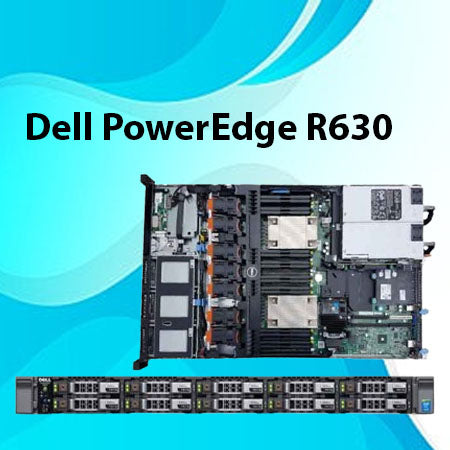

Dell PowerEdge R630 Server
Dell PowerEdge R630 Server
Regular price
Rs. 21,240.00
Regular price
Sale price
Rs. 21,240.00
- Form Factor: 1U Rack
- CPU: Dual Intel Xeon E5-2600 v4 Family
- Cache Memory: 2.5MB per Core
- Chipset: Intel C610 Platform
- RAM: 1.5TB DDR4 (24 Slots)
- Max Storage: 23TB
- PCIe Slots: Up to 3 × PCIe 3.0
- Power Options: 495W, 750W, 1100W
- Controllers: PERC S130 / H330 / H730 / H730P
Quantity
Couldn't load pickup availability
Key Technical Specifications & Flexibility
Here’s a breakdown of what the R630 supports (actual config depends on your build):
| Feature | Specification / Capability |
|---|---|
| Processors (CPU) | Supports 2 × Intel® Xeon® E5-2600 v3 / v4 series processors. Core counts per CPU vary — options include 4, 6, 8, 10, 12, 16, 18, 22 cores (depending on CPU model) |
| Memory (RAM) | 24 DIMM slots (12 per CPU). Supports DDR4 ECC Registered (RDIMM) or Load‑Reduced (LRDIMM) memory, up to 1.5 TB total (using 24 × 64 GB LRDIMMs) at up to 2400 MT/s. |
| Storage / Drive Bays | Highly flexible storage options: • Up to 10 × 2.5" SAS/SATA/SSD drives (hot‑plug) or • Up to 24 × 1.8" SSDs (flash) — making it possible to build very dense storage arrays in just 1U. Also supports NVMe (Express Flash) PCIe SSDs (e.g. up to 4 NVMe PCIe) depending on configuration. |
| Maximum Internal Storage | Depends on drive config — for example: using 10 × 2.5" 1.8 TB drives → up to ~18 TB; using 24 × 1.8" SSDs → up to ~23 TB (with 0.96 TB drives) per official spec sheet. |
| I/O / Expansion | Up to 3 × PCIe 3.0 slots + dedicated RAID controller slot — allows for extra NICs, HBAs, RAID controllers, or other expansion cards. |
| RAID & Storage Controllers | Supports software RAID or hardware RAID: built‑in / optional controllers like PERC S130 (software), PERC H330, H730, H730P. External HBA/RAID (12 Gbps SAS) also supported. |
| Networking | Embedded NIC options vary depending on build — e.g. 4 × 1 GbE; or 2 × 1 GbE + 2 × 10 GbE; or 4 × 10 GbE depending on NIC / LOM configuration. |
| Power & Redundancy | Supports redundant, hot‑swappable power supplies (multiple PSU options) and redundant cooling/fans — making it suitable for data‑center uptime / enterprise use. |
| Management & Features | Enterprise‑grade features: ECC memory, hot‑plug drives, redundant PSUs/fans, optional dual‑SD module (for hypervisor boot/failover), support for virtualization, clustering, remote management with built‑in management tools |
