Dell

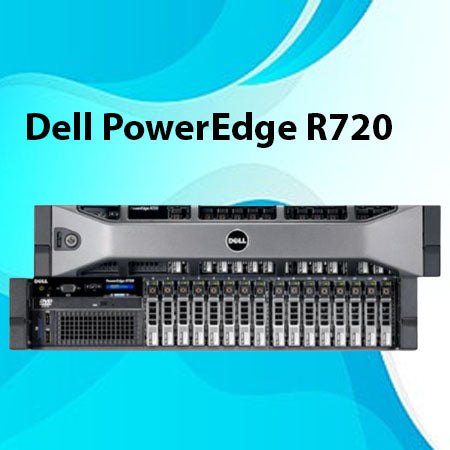

Dell PowerEdge R720 Rack Server

Dell PowerEdge R720 Rack Server

Rs. 17,700.00
Rs. 17,700.00
Sale Sold out
  • Form Factor: 2U Rack
  • Processor: 2x Intel Xeon E5-2600 / E5-2600 v2 CPUs
  • Cache: 2.5MB per Core
  • Chipset: Intel C602
  • Memory: 768GB DDR3 (1866MT/s)
  • DIMM Slots: 24
  • Expansion Slots: 6 PCIe Slots
  • Drive Support: 16 × 2.5” or 8 × 3.5” Hot-Plug Drives

What is the Dell PowerEdge R720

  • The R720 is a 2U rack‑mount server, designed for enterprise, data center, virtualization, storage and mixed workloads.
  • It is a dual‑socket server, able to host two CPUs simultaneously — giving good compute power for multi‑threaded workloads, virtualization, databases, etc.
  • It’s highly configurable — you can adjust CPU, memory, storage and expansion options depending on your use‑case, which makes it versatile for different kinds of workloads.

Key Technical Specifications & Configuration Options

Here are the main specifications and configurable options for the R720 (actual values depend on your setup):

Feature Specification / Capability
Processors (CPU) Supports 2 × Intel® Xeon® processors from the E5‑2600 / E5‑2600 v2 family.
Memory (RAM) Up to 768 GB DDR3 — 24 DIMM slots available (with 2 GB / 4 GB / 8 GB / 16 GB / 32 GB modules) depending on configuration.
Storage / Drive Bays Flexible drive bay configuration:
• Up to 8 × 3.5″ drives (SAS/SATA/NL‑SAS) for large‑capacity HDD setups.
• Or up to 16 × 2.5″ drives (SAS/SATA/SSD / PCIe SSD) for high‑density or high‑IOPS storage arrays.
Supports hot‑plug drives (for easier maintenance).
Maximum Internal Storage Up to ~32 TB (depending on drive types) when fully populated.
I/O / Expansion / PCIe Slots Up to 7 PCIe slots (various configurations):
– 1 × x16 (full‑length, full‑height)
– 3 × x8 (full‑length, full‑height)
– 3 × x8 (half‑height, half‑length) — allowing for additional network cards, storage controllers, accelerator cards, etc.
RAID / Storage Controllers Multiple internal RAID controller options: e.g. PERC S110 (software RAID), PERC H310, PERC H710, PERC H710P — for RAID 0/1/5/6/10 etc depending on drives.
External RAID/HBA options supported (e.g. PERC H810, 6Gbps SAS HBA) for connecting to external storage arrays if needed.
Networking / NIC Options Depending on configuration: embedded NICs available; can add high‑speed network cards via PCIe slots (e.g. 1 GbE, 10 GbE) for better connectivity or clustering.
Power & Redundancy Supports hot‑plug, redundant power supply units (PSUs) — ensuring reliability for 24/7 operation typical of data‑center environments.
Form Factor & Rack Compatibility 2U rack server (height ~ 87.3 mm), standard 19″ rack width, depth and rails compatible with standard data‑center racks.
