Dell

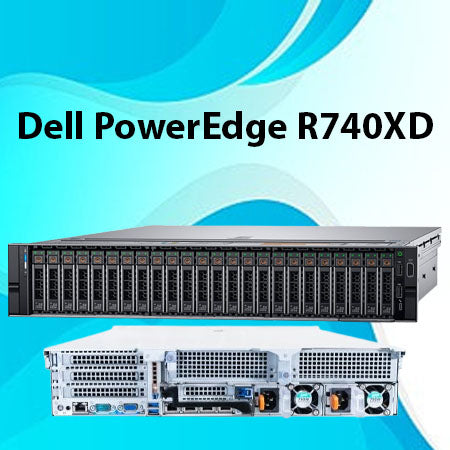

Dell PowerEdge R740xd Rack Server

Dell PowerEdge R740xd Rack Server

Rs. 100,300.00
Rs. 100,300.00
Sale Sold out
  • Product: Dell PowerEdge R740xd Rack Server
  • Form Factor: 2U Rack Server
  • Processor: Up to two Intel Xeon Scalable processors, up to 28 cores per processor
  • Memory: 24 DDR4 DIMM slots
  • Max Storage: Up to 196TB
  • Max Memory: Up to 3TB
  • PCIe Slots: Up to 8 x PCIe Gen 3 slots



Key Technical Specifications

Feature Specification / Capacity
Processor (CPU) Up to 2 × 2nd Generation Intel Xeon Scalable processors — each CPU can have up to 28 cores.
Memory (RAM) 24 DDR4 DIMM slots (12 per CPU) — supports RDIMM or LRDIMM. Max memory: 3 TB (with LRDIMM).
Also supports NVDIMM (up to 192 GB) and Intel® Optane™ DC Persistent Memory (DCPMM) (up to 6.14 TB; up to 7.68 TB with certain LRDIMM combinations).
Storage / Drive Bays Very high flexibility:
• Up to 24 × 2.5″ SAS/SATA/NVMe (hot-swappable, high-density) — for high-performance SSD/NVMe use. Max raw storage up to ~184 TB.
• Or up to 12 × 3.5″ SAS/SATA HDDs for capacity-heavy storage.
Additional mid and rear bays available depending on chassis configuration (for added flexibility in storage layout).
Storage Controllers / RAID / Boot Options Multiple internal RAID/controller options (e.g. PERC H330, H730P, H740P, HBA330), software RAID (S140), plus boot-optimized storage subsystem (BOSS) using dual M.2 SSDs (ideal for OS / boot drives).
Also supports external RAID controllers (e.g. PERC H840) or external 12Gbps SAS HBAs if needed.
I/O / Expansion / GPUs / Accelerators

Up to 8 PCIe Gen3 slots (various riser configurations) allowing for expansion cards, storage controllers, network cards, etc.


If using the 24 × 2.5″ “SFF/NVMe-ready” chassis, the server supports up to 3 double-width GPUs (300 W each) or 6 single-width GPUs (150 W each). Also supports FPGAs (double- or single-wide) in that configuration.
Networking options: various — including 1 GbE, 10 GbE, or 25 GbE NICs depending on configuration.
Management & Remote Control Integrated management via iDRAC9 (with Lifecycle Controller), plus remote management tools like OpenManage. Supports console, remote power control, firmware updates, monitoring, etc.
Supports TPM / Secure Boot / firmware security options to enhance server integrity.
Power & Cooling Wide range of power-supply options: from ~495 W up to 2400 W (AC or DC) — all hot-plug and redundant power-supply options supported.
Up to 6 hot-plug cooling fans, with redundancy — important for reliability in data-center environments.
Form Factor & Dimensions 2U rack server. Physical dimensions: ~86.8 mm (height) × 434 mm (width) × 737.5 mm (depth). Typical weight ~33.1 kg depending on configuration.
View full details
