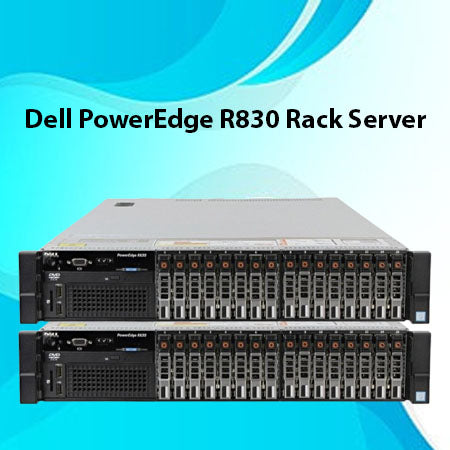

Dell PowerEdge R830 Rack Server

Dell PowerEdge R830 Rack Server

Regular price Rs. 47,200.00
Regular price Sale price Rs. 47,200.00
Sale Sold out
  • Form Factor: 2U Rack Server
  • Processor: 4 × Intel Xeon E5-4600 v4 CPUs (22 cores)
  • Chipset: Intel C612
  • Memory: 3TB DDR4 (48 DIMM Slots, 2400MT/s)
  • Storage: 16 × 2.5″ SAS/SATA SSDs or HDDs
  • Expansion Slots: 7 PCIe Slots
  • RAID Controllers: PERC H330, H730, H730P, H830
  • Power Supplies: 750W, 1100W, 1600W
Quantity

Key Technical Specifications & Capabilities

Here’s a summary of what R830 supports (actual values depend on how it is configured).

Feature Specification / Capability
Processor (CPU) Supports up to 4 × CPUs from the Intel® Xeon® E5‑4600 v4 (or v3) family — each CPU can have up to 22 cores
Memory (RAM) 48 × DDR4 DIMM slots (RDIMM or LRDIMM), up to ~ 3 TB RAM total. Memory speed up to 2400 MT/s (depending on CPU and memory type).
Storage / Drive Bays Up to 16 × 2.5″ SAS/SATA/SSD (or compatible hot‑plug drives) supported.
Some configurations may also support alternative backplanes for other drive types (depending on vendor / build).
Storage Controllers / RAID Options Internal RAID controllers supported: e.g. PERC H330, H730, H730P
External HBA/RAID also possible (for external storage expansion) — e.g. 12 Gbps SAS HBAs or external RAID controllers.
I/O / Expansion / PCIe Slots Up to 7 PCIe slots (various riser configurations): including 2 × x16 (half‑length, full‑height), 1 × x8 (half-length, full-height), and additional x8 slots for other cards/RAID controller.
This allows network cards (10GbE NICs), HBAs, RAID cards, possibly accelerator cards (if power/space allow), or other I/O expansions.
Networking Options Flexible networking: base NICs often include 1 GbE ports; optional network daughter‑cards allow 10 GbE or higher, depending on configuration.
Power & Redundancy Supports redundant, hot‑plug power supplies (PSUs) — typical options include 750 W, 1100 W, or 1600 W PSUs depending on configuration.
Server Management Integrated remote management via R830’s management stack (remote access controller, management tools) — helpful for enterprise data center management, remote administration, monitoring, automation.
