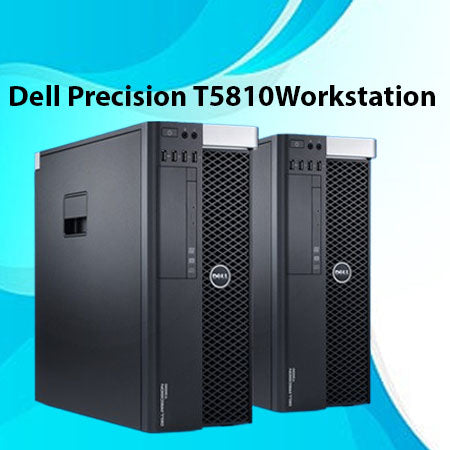

Dell T5810 Workstation

Dell Precision T5810 — Overview

The Dell Precision T5810 is a tower professional workstation designed to handle demanding tasks like 3D design, CAD, video production, simulation, and data-intensive workflows while offering excellent expandability and reliability.

Key Specifications

Processor

• Single-socket design supporting Intel Xeon E5-1600 v3/v4 series and select Xeon E5-2600 v3/v4 CPUs — up to 18 cores depending on model.

Memory

• Quad-channel DDR4 ECC RDIMM memory with up to 256 GB total across 8 DIMM slots — great for multitasking and heavy workloads.

Storage

• Flexible storage with support for M.2 PCIe NVMe SSDs (up to 4) and multiple SATA/SAS HDD/SSD options — up to ~12 TB total.

Graphics

• Dual PCIe x16 Gen3 slots supporting professional GPUs — examples include NVIDIA Quadro and AMD FirePro cards for 3D rendering and visualization tasks.

Expansion & I/O

• Multiple PCIe expansion slots, USB 3.0/2.0 ports, Gigabit Ethernet, and optional add-in cards like Thunderbolt or additional network cards.

Power

• Powerful PSU options (up to ~825 W) to support high-end GPUs and many drives
