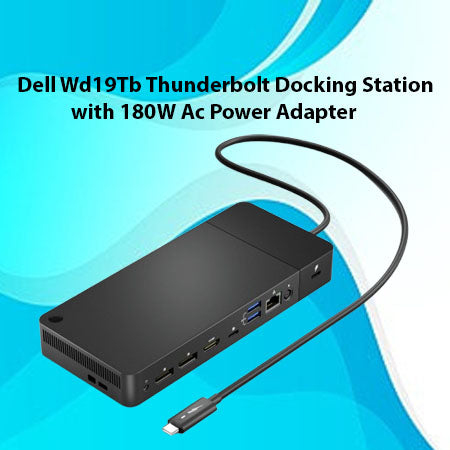

Dell Wd19Tb Thunderbolt Docking Station with 180W Ac Power Adapter

Dell WD19TB Thunderbolt Docking Station (180W Power Adapter)

The Dell WD19TB is a high-performance Thunderbolt 3 docking station designed for Dell Latitude, Precision, and XPS laptops, while also supporting non-Dell Thunderbolt systems. It delivers power, display expansion, high-speed data, and networking through a single cable.

Key Features

• Thunderbolt 3 Performance
• Thunderbolt 3 (40 Gbps) connectivity
• Single-cable solution for power, data, video, and audio
• Backward compatible with USB-C systems

Multi-Display Support

Supports up to three external displays, depending on system and monitor resolution:

• Up to 2 × 4K @ 60 Hz
• Or 3 × QHD (2560×1440)
• Or 1 × 5K @ 60 Hz

Display capability depends on GPU, OS, and monitor configuration.

Power Delivery

180W AC Power Adapter included

Delivers up to:

• 130W power to supported Dell systems
• 90W power to non-Dell Thunderbolt laptops
• Ideal for high-performance workstations

Ports & Connectivity

Front

• 1 × USB-C (Thunderbolt 3 downstream)
• 1 × USB-A 3.1 Gen 1
• 1 × Audio combo (Headphone/Mic)

Rear

• 2 × DisplayPort 1.4
• 1 × HDMI 2.0
• 1 × USB-C (Thunderbolt 3 upstream to laptop)
• 2 × USB-A 3.1 Gen 1
• 1 × Gigabit Ethernet (RJ-45)
• 1 × DC-in (Power)

Compatibility

Dell Systems

• Latitude 5000 / 7000 / 9000 series
• Precision Mobile Workstations
• XPS laptops with Thunderbolt 3

Other Brands

• Thunderbolt-enabled laptops (HP, Lenovo, Apple, etc.)
• macOS & Windows supported (feature set may vary)

(The best performance is achieved with Dell Thunderbolt laptops.)
