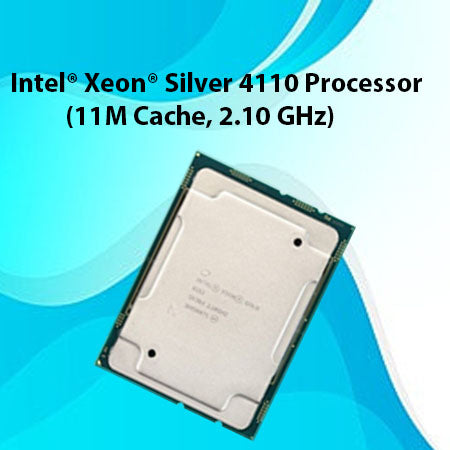

Intel® Xeon® Silver 4110 Processor

Key Specifications & Features — Xeon Silver 4110

• Cores / Threads: 8 cores, 16 threads (with Hyper-Threading).

• Base Clock Speed: 2.10 GHz.

• Max Turbo Frequency: Up to 3.00 GHz (via Intel Turbo Boost)

• Cache: 11 MB L3 “Smart Cache”

• Architecture / Lithography: 14 nm “Skylake-SP”, part of Intel’s Xeon Scalable family.

• Socket: LGA3647 — requires a server/workstation-class motherboard.

• Memory Support: Up to 768 GB DDR4, 6 memory channels, ECC RAM supported.

• PCIe / I/O: PCIe 3.0 with up to 48 lanes — enough for NVMe drives, NICs, accelerators, etc.

• Power / Thermal: TDP = 85 W — relatively low power draw for a server-class CPU.

• Features: Supports AVX / AVX2 / AVX-512, virtualization (VT-x, VT-d), AES-NI, ECC memory, 64-bit, and other enterprise-class/server features.
