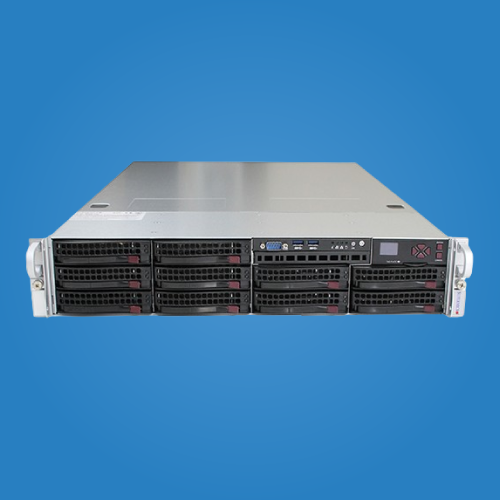

Supermicro 2U 10 LFF Rack Server

Form Factor

• 2U, rack-mount chassis for 2
• 12 × 3.5″ LFF drive bays (Large Form Factor) in the chassis

Compute / CPU

• Supports Intel Xeon Scalable (Skylake) CPUs as per G6 multinode spec.
• Example configurations: Silver 4114 (10-core), Silver 4116, Gold 5120, etc.

Memory

• Supports a large memory configuration per node (with many DIMM slots). According to listings, up to 24 DIMM slots is possible for the dual node chassis.
• Since G6 supports high memory, it can be used in memory-heavy workloads.

Storage

• Because of the 12 LFF bays, it's suited to host large-capacity HDDs or LFF form factor drives.
• The drive bays give flexibility to mix HDDs (for capacity) or even large SAS drives. The server store listing shows 3.5″ SATA and SAS options.
• It may support SSDs as well, depending on configuration.

Power Supply

• According to chassis listing, it comes with dual 2200 W power supplies.
• This provides redundancy and supports a fully loaded system with many drives.

Networking

• The server has integrated networking; typical Nutanix NX nodes support 10 GbE / high-speed network. In a listing, they describe “dual 10GbE” connectivity.
• Also suitable for hyper-converged infrastructure networking needs.

Use Case / Purpose

• Designed for Hyper-Converged Infrastructure (HCI). Nutanix appliance: compute + storage node together. Because of its 12 LFF drive bays, it's especially good for storage-heavy workloads: e.g., capacity-tier, archival, large data sets.
• Also suitable for virtualization / VMs / Nutanix AOS (Acropolis) clusters.

Reliability & Redundancy

• Dual nodes in same chassis provide fault-tolerance at some level (depending on cluster design).
• Dual PSUs improve power redundancy.

Thermal & Cooling

• The NX-8000 / G6 series uses efficient rack design; 4x 80 mm fan modules are common in G6 to manage cooling.
• Operating environmental specs: typical data center operating temperature ranges. Licensing & Software

• Runs Nutanix software (AOS) — since it's a certified Nutanix NX platform.
• Can be part of a Nutanix cluster (with other NX nodes) to provide distributed storage and compute.

Pros

• High capacity: 12 LFF bays → large storage potential.
• Scalable compute: 2 nodes in 1 chassis.
• Redundant power.
• Good for HCI, mixed workloads, storage-first clusters.
